CASE
Belzona Shaft Repair on Commercial Mixer in Food Production Facility
Problem

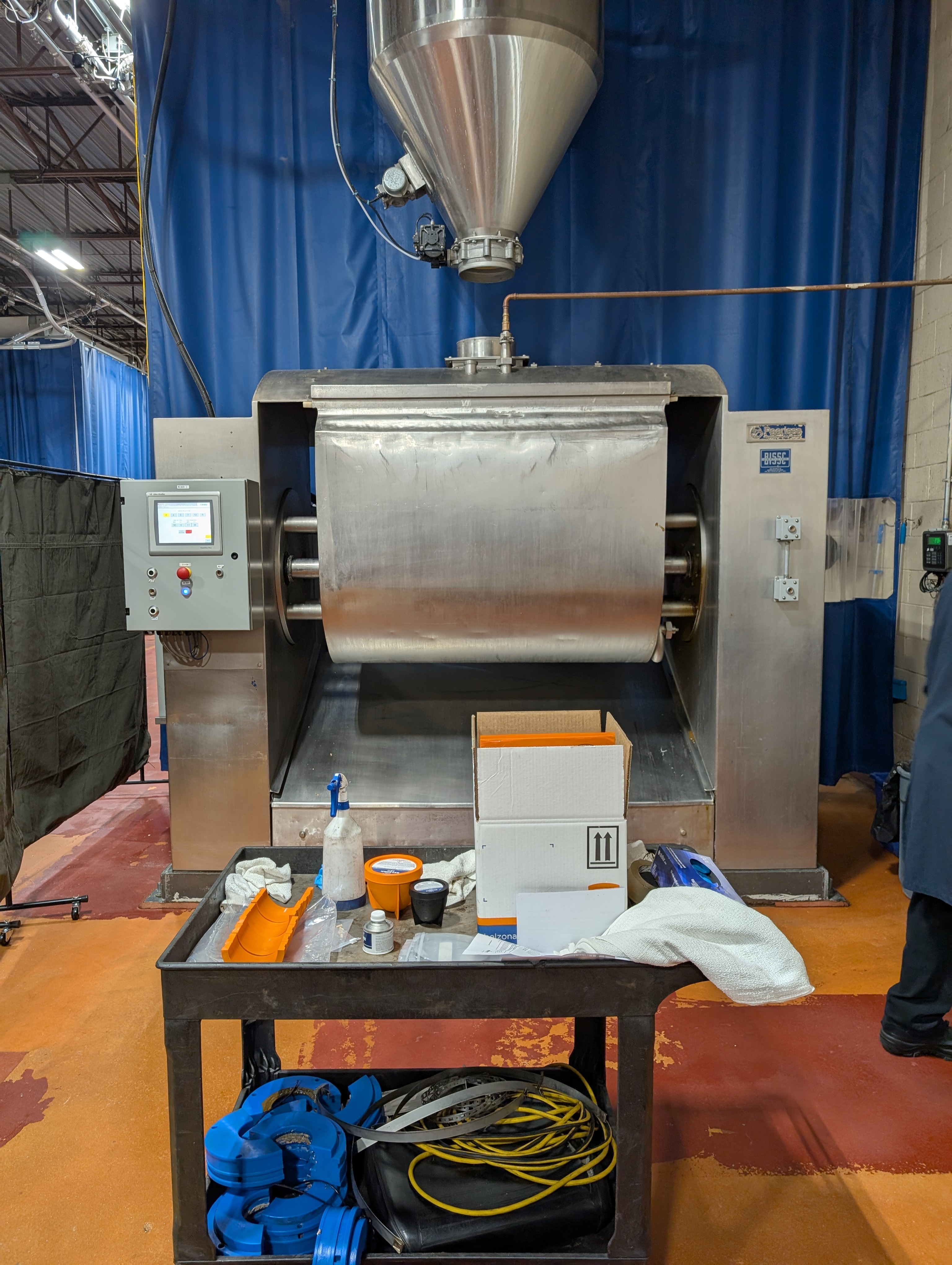

The Client, operating a Food Production facility in Mississauga, Ontario. Had a large scale, horizontal mixer experiencing advanced wear on several output shafts. Subsequently, the mechanical seals were unable to perform due to the damage, causing both product leakage and potential contamination. The equipment was apiece of legacy hardware that had previously been retrofitted and repaired using an unknown product.
Industry
Food & Drink
Application Date
2025
Location
Mississauga / Ontario / Canada
Equipment Application
MPT-Mechanical Power Transmission
Subtrate
Carbon Steel
Product
Belzona 1311 (Ceramic R-Metal)
Belzona 9411 (Release Agent)
Repair Stages
Application Situation
Upon inspection, it was determined that due to the sheer size of the mixer, it’s location within the facility, along with the cost associated in disassembly and transport. That they were unable to suffer the necessary downtime and sought a repair in place solution from Belzona.
Application Method

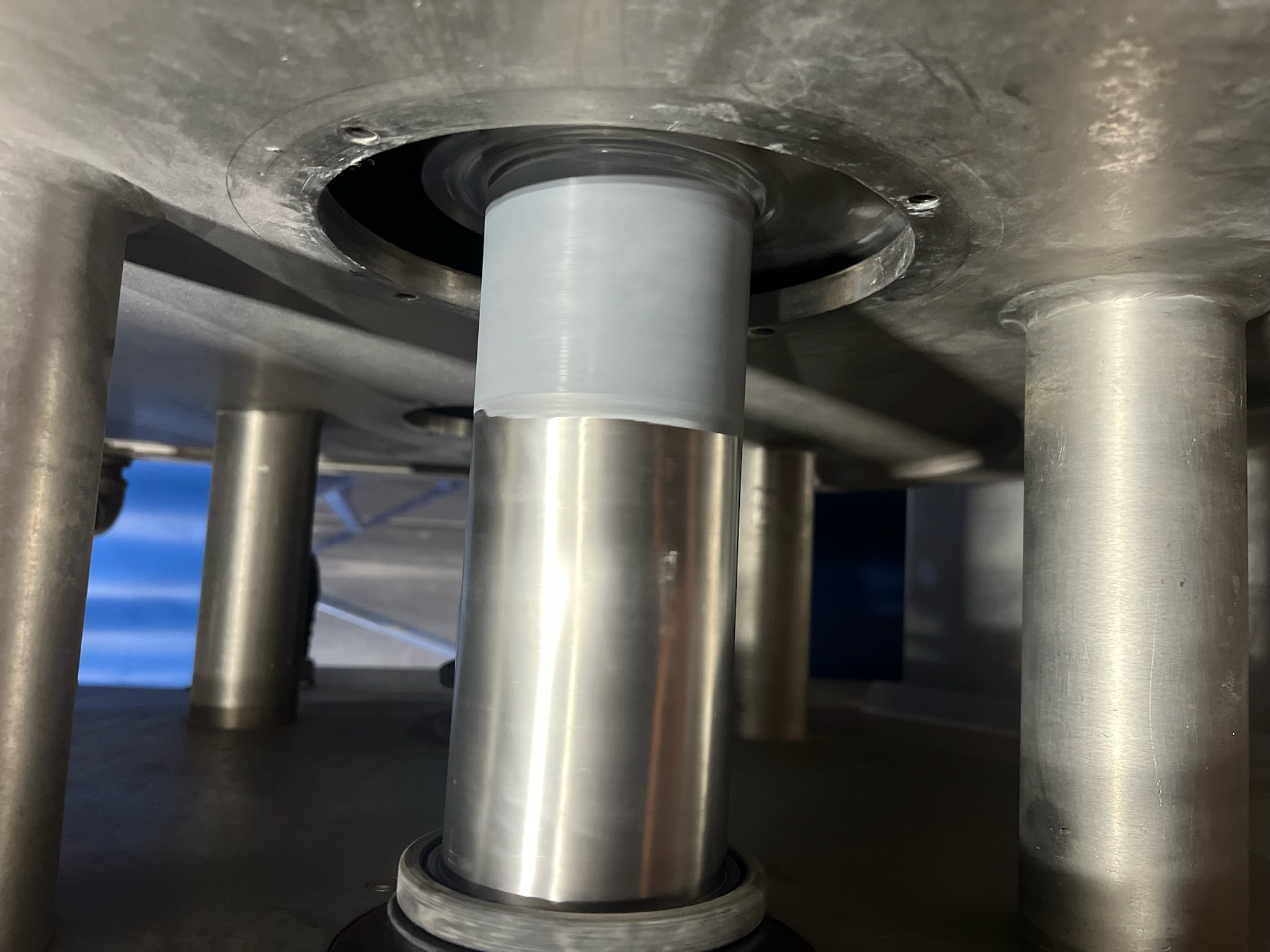

Surface prep was completed using a combination of Sanding Strips, Grinders, and Manual Filing tools. The area was then taped off to prevent excess product from curing on the unaffected shaft areas. This repair was completed using a custom printed 3D mold, coated with Belzona 9411 Release Agent The Molds were then used in conjunction with Belzona 1311 to compete the repair using the proper Forming Technique.
Belzona Facts
Belzona saved the company countless dollars by eliminating extended downtime. The alternative would have been extremely costly due to specialized personnel needed to move and transport the damaged equipment. Plus the repair and reinstallation time. Without the need to dissemble and move the equipment, they were able to keep the rest of their production areas open and operational.
Contact your nearest Belzona Consultant and schedule a free evaluation!
