Protection of Wastewater Centrifuge
The centrifuge was suffering from erosion-corrosion and scale buildup. They needed a product that would protect the equipment but also help reduce the buildup and improve the efficiency of the equipment.
CASE
Coated Secondary Containment Areas
Problem
The new water treatment facility had four rooms with secondary containment areas for storing chemicals that was required to have protecting coating to prevent the area against corrosion.
Industry
Water & Wastewater Management
Application Date
2000
Location
Ontario / Canada
Equipment Application
FPA-Floor Problem Areas
Subtrate
Concrete
Product
Belzona 4311 (Magma CR1)
Belzona 4911 (Magma TX Conditioner)
Belzona 5811 (Immersion Grade)
Belzona 9111 (Cleaner Degreaser)
Repair Stages
Application Situation
The assist owner wanted to protect the new concrete from chemicals attacking the concrete from corrosion. The areas needed protection from Sodium Hypochlorite and Sodium Bisulphite.
Application Method

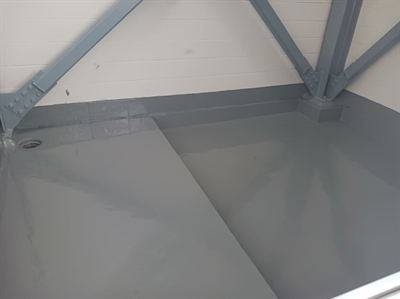

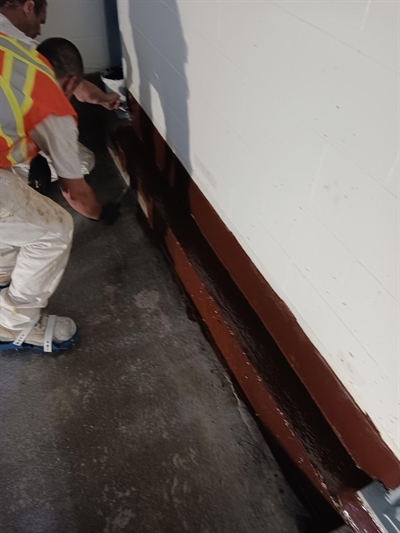

All concrete was ground using a grinder with a diamond Disc, all dust was vacuumed and area cleaned by using BelzAll concrete was ground using a grinder with a diamond Disc, all dust was vacuumed and area cleaned by using Belzona 9111, A mositsure test was performed to check the mositsure level content, it was below the 6% that is recommended. Three rooms required Belzona 4911 Magma Conditioner and Belzona 4311 Magma CR1 coating, the forth room required protection using Belzona 5811.
Belzona Facts
Application was specified by the Design Engineering Company and the support of Belzona, the application was performed by a coating sub-contractor with the support from the local Technical Consultant.
Contact your nearest Belzona Consultant and schedule a free evaluation!
