Chemically Damaged Floor Rebuilt and Protected with Belzona
Problem
Manufacturing plant that processes Bio-based succinic acid was having issues with their floors. Dry process material of Bio-based succinic acid was being spill onto the concrete floor and during floor washing operations, water activated the acid and this
Industry
Petrochemical
Application Date
2019
Location
Sarnia / Ontario
Equipment Application
FPA-Floor Problem Areas
Subtrate
Concrete
Product
Belzona 4311 (Magma CR1)
Belzona 9111 (Cleaner Degreaser)
Repair Stages
Application Situation
The asset owner was planning on chipping all loose concrete from the floor before patching all damage to regain the propeThe asset owner was planning on chipping all loose concrete from the floor before patching all damage to regain the proper elevation and finish. The previous coating did not provide any chemical protection and was not effective at preventing the acid from attacking the concrete. The floor needed to be re-coated with an acid proof coating that was also able to take walking traffic and the occasional abrasion from hand tools, scraper, brooms, etc. They wanted a floor coating able to last many years in this harsh environment.
Application Method

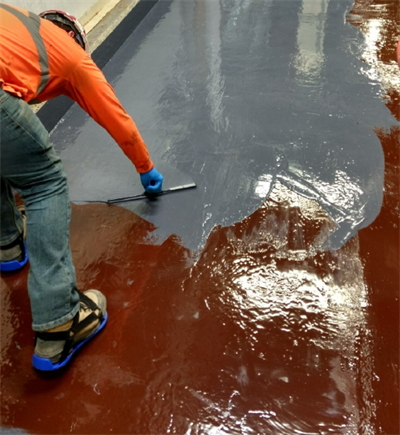

The damaged concrete was washed and decontaminated. Missing concrete areas were refurbished and smooth out. 2coats of Belzona 4311 (Magma CR1) were applied to prevent future deterioration of the concrete via chemical attack.
Belzona Facts
The customer had interest in performing further tests, so we provided small brick samples coated with Belzona 4311 (MagThe customer had interest in performing further tests, so we provided small brick samples coated with Belzona 4311 (Magma CR1). The coated samples were immersed in Succinic acid for 1 month. The coating did not exhibit any sign of deterioration. the customer was pleased with the performance of the coating and decided to proceed. The coating was inspected in late 2023 (4 years later) and was still protecting the floor.
Contact your nearest Belzona Consultant and schedule a free evaluation!
