Leaking Porous Weld Repair
Problem
Weld Joint on stainless steel pipe was leaking due to a porosity and slag inclusion.
Industry
Water & Wastewater Management
Application Date
2021
Location
Ontario / Canada
Equipment Application
VPF-Valves, Pipes and Fittings
Subtrate
Stainless Steel
Product
Belzona 1111 (Super Metal)
Belzona 9111 (Cleaner Degreaser)
Repair Stages
Application Situation

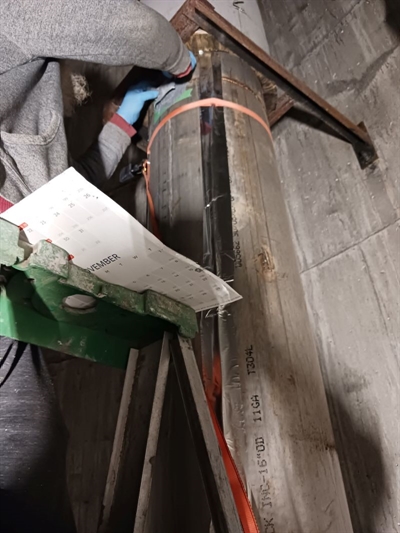

The asset owner required a weld joint on the city water tower S/S filling pipe to be repaired without performing hot work and also required a NSF approved product.
Application Method
Preparation was completed in-way of using a grinder with a 80 grit sanding pad, than cleaned with Belzona 9111. Next the Belzona 1111 repair composite was mixed and applied well into the preferred area. Using a piece of Belzona 9341 Reinforcing cloth was wetted out and applied over the repair area with a further layer of Belzona 1111 until the cloth was covered.
Belzona Facts
Sub-Contractor contacted Belzona Great Lakes to discuss solutions the BGL would suggest to be used for this type of repair and also mentioned that a approved NSF-61 product was required.
